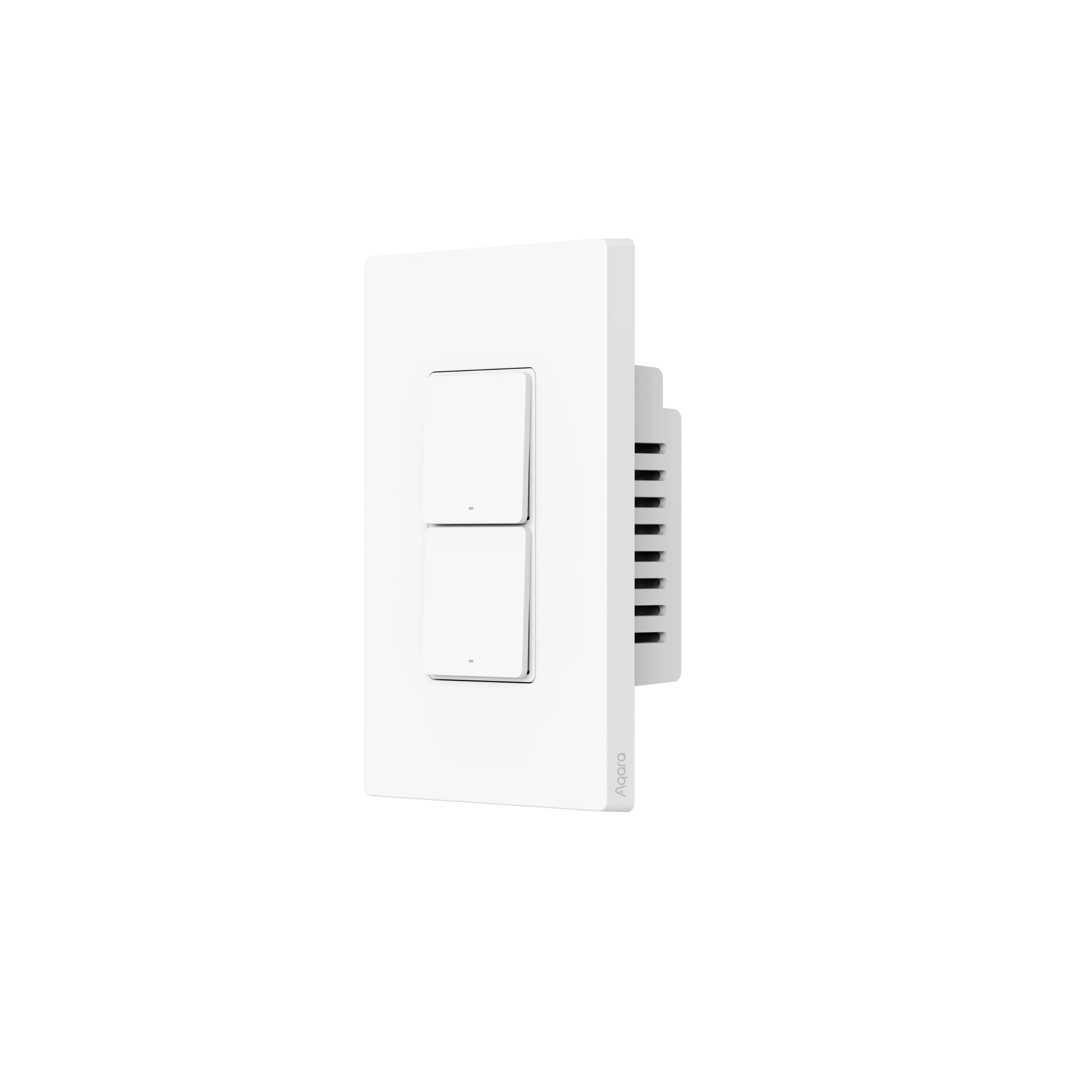

Aqara Smart Wall Switch H2 (Vertical)

Product Description:

Aqara Smart Wall Switch H2 (Vertical) is designed for ultimate compatibility and convenience, supporting both Zigbee and Matter over Thread protocols for seamless integration with third-party ecosystems. Effortlessly turn lights and other smart devices on or off or control them wirelessly with ease. No need to worry about compatibility with your home’s existing wiring—this switch supports both with-neutral and no-neutral setups. Available in 1 to 3-channel versions, it adapts to diverse control needs, making it the perfect choice for different scenarios.

Key Features:

● Thread/Zigbee Support

The device features dual protocol support. In Thread mode, no Aqara hub is required to connect to third-party Matter ecosystems [1], while Zigbee mode [2] unlocks exclusive Aqara features and ensures backward compatibility with Aqara Zigbee hubs. The flexible protocol switching [3] lets users enjoy Matter integration or Aqara's advanced functionalities based on their preference.

● Works With or Without Neutral Wire

Whether your home has a neutral wire or not, this switch is designed for hassle-free installation. It supports both no-neutral and with-neutral wiring setups, eliminating any concerns about your home's wiring configuration. For homes without a neutral wire, installation is straightforward, while homes with a neutral wire benefit from advanced features like overload protection and power monitoring [4] enhancing both safety and efficiency.

● Customise Buttons for More Wireless Control [5] [6]

Your buttons can go beyond simple on/off, they also can trigger scenes and automations you configure. Decouple or lock the relay to turn buttons into wireless triggers, then expand them with single, double, and long presses to trigger multiple devices with one button, one switch becomes a powerful controller for your entire smart home.

● Manage up to 3 Separate Lighting Circuits

Offers flexible control of up to 3 circuits with multifunctional buttons. Whether you need simple or advanced control, these buttons provide both relay and wireless control for managing multiple lighting circuits and smart home automations with ease.

● Power Monitoring [7]
The switch monitors the power consumption of connected wired devices and provides daily/weekly/monthly energy consumption reports in Aqara Home. Users can use these data reports to optimise their daily electricity usage or create energy-saving plans and automations to reduce consumption and increase sustainable energy use.

Disclaimers:

[1] To use the device with a particular Matter ecosystem, a Matter Controller of this ecosystem and a Thread Border Router are required.

[2] Aqara Zigbee hub required.

[3] To switch protocols, you need to factory reset the device.

[4] The advanced features might be unavailable in some or all third-party Matter ecosystems, but is indeed supported by the device. To guarantee its functionality, we suggest using the Zigbee mode and connecting the device to an Aqara hub.

[5] Please note: the feature might be unavailable in some or all third-party Matter ecosystems, but is already supported by the device. To guarantee this functionality, we suggest using the Zigbee mode and connecting the device to an Aqara hub.

[6] The applicability of Decoupled Switch Mode for the buttons varies by SKU.

Rule: one channel corresponds to one button with this functionality:

(2 Buttons, 1 Channel): Top button only

(2 Buttons, 2 Channels): Both buttons (top and bottom)

(4 Buttons, 3 Channels): Top three buttons

[7] With-neutral wiring is required for power monitoring. This feature might be unavailable in some third-party Matter ecosystems, but is already supported by the device. To guarantee its functionality, we suggest using the Zigbee mode and connecting the device to an Aqara hub.

Automation:

1	Heading	Easy Wireless Lighting Access
	IF THEN	WHEN Button 2 is pressed THEN Turn on/off Ceiling Light - Main Light WHEN Button 2 is double pressed THEN Turn on/off Ceiling Light - Side Light
	Description	Easily control your living room ceiling light right from your bedroom — one button toggles the main light, double press handles the side light. No need to get up — conveniently manage lighting from bed using a spare wireless switch.
	Devices	Smart Wall Switch H2 Vertical (2 Buttons, 1 Channel) + Ceiling Light T1M + Hub M3
2	Heading	Smart Light Timeout
	IF THEN	WHEN Presence is detected IF Below 20 Lux THEN Turn on light WHEN Absence is detected over set minutes IF Above 100 Lux THEN Turn off light
	Description	Integrate the auto-off timer into a home automation routine, which ensures lights are only on when needed and automatically turn off when no longer required for user convenience and energy savings: the light stays on upon presence. It turns off after the preferred absence timer expires.
	Devices	Smart Wall Switch H2 Vertical + Presence Sensor FP2+ Hub M3
3	Heading	Energy Saving Routine
	IF THEN	WHEN Weekdays at 09:00 IF Absence (Nobody is at home) THEN Turn off all connected lights Enable Away Mode
	Description	In case of forgetting to turn off the light (up to 3 lights depending on switch model), the switch will automatically turn off all the light(s) , saving energy and time: no worries about being late or wasting electricity.
	Devices	Smart Wall Switch H2 Vertical (4 Buttons, 3 Channels) + Hub M3 + Presence Sensor FP1E

Specifications：

Product Name

Aqara Smart Wall Switch H2 (Vertical, 2 Buttons, 1 Channel)

Aqara Smart Wall Switch H2 (Vertical, 2 Buttons, 2 Channel)

Aqara Smart Wall Switch H2 (Vertical, 4 Buttons, 3 Channel)

Model

WS-K02E

WS-K03E

WS-K04E

Wireless Protocols

Thread, Zigbee, Bluetooth

Dimensions

119 × 74 × 42 mm

Electrical Rating

120-240VAC, 50/60 Hz, Max. 10 A (Resistive Load), μ

Minimum Power

5 W (No Neutral), Unlimited (With Neutral), general purpose

Thread Operation Frequency

2400-2483.5Mhz

Thread Maximum Output Power

≤ 13 dBm

Bluetooth Operation Frequency

2400-2483.5Mhz

Bluetooth Maximum Output Power

≤ 13 dBm

Operating Temperature

0 °C ~ 40 °C

Operating Humidity

0 ~ 95% RH, no condensation

Supports*: Aqara Home, Apple Home, Google Home, Amazon Alexa, SmartThings

*To use the device with a particular Matter ecosystem, a Matter Controller of this ecosystem and a Thread Border Router are required.

What is in the box:

Aqara Smart Wall Switch H2 (Vertical)*1 (specific model depends on purchase)

Compliance Statement × 1

User Manual × 1

Screw Kit × 1

Wire Nuts Kit × 1

Wiring Sticker Sheet × 1
